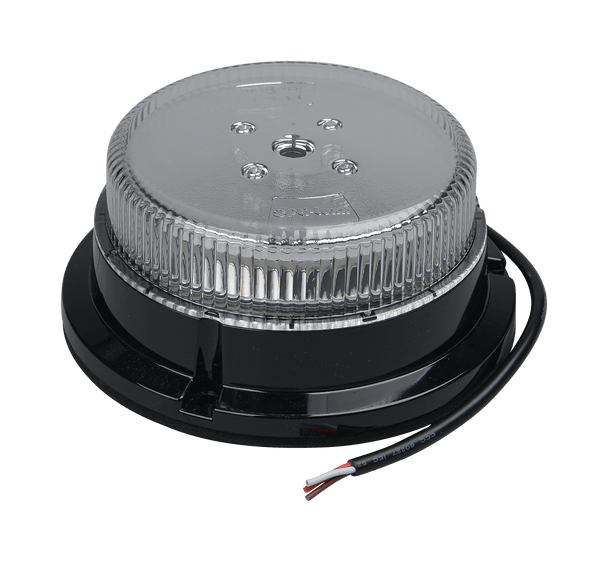

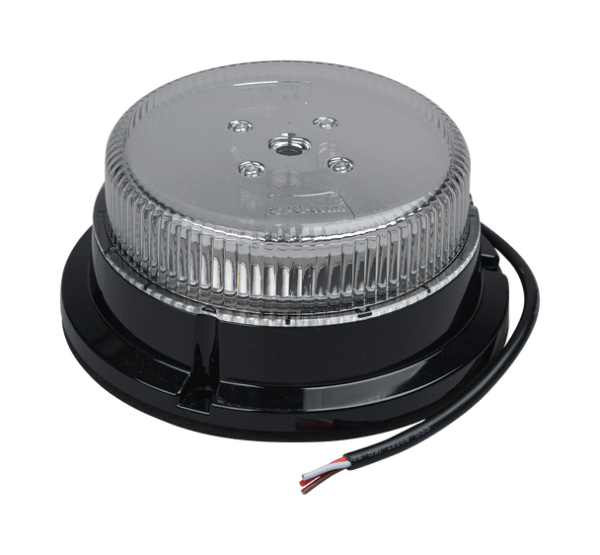

100BC0003-A, Opti-Luxx Low Profile Clear LED Strobe Beacon

Bright and durable, simple to install, and ready for anything!

• 100BC0003-A
• Input Voltage Range:  10-30 VDC
• Current Draw:  1.2A@13.8Vdc, 0.65A@28Vdc
• LED Count:  Low Profile:  12
• Flash Patterns:  4
• Operating Temperature”: -40 Celsius to +65 Celsius
• Dimensions:  Height – 3.19″ (81mm),  Diameter – 6.7″ (170.9mm)
• Mounting:  Surface Mount, 3 Holes on 5.99″ (152.1mm) circle dia. Adhered EVA gasket
• Certifications:  SAE J845/J2139 CLASS 1 BEACON IP67
• 3 Year Warranty

Additional Features

• Plug & Play compatible with existing 3-hole beacon mounting patterns
• Center drop wire for ease of installation
• Best-in-class optics provides light output that meets SAE J845 Class 1 requirements
• 360-degree illumination provides outstanding visibility from all angles
• Adhered base gasket assures water-tight seal to the vehicle without the use of sealants.

Replaces part # USB3107LCC
