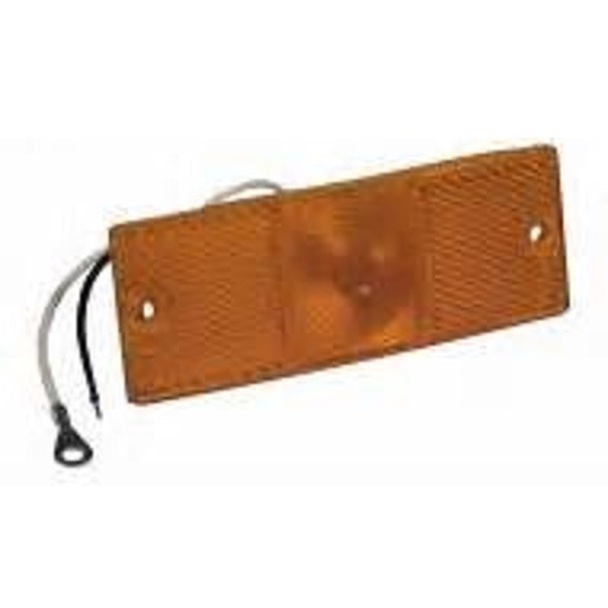

18300Y, Truck-Lite Model 18 Clearance/Marker Light (Amber)

• 18300Y
• Truck Lite Model 18 Amber Clearance/Marker Light Kit (Light, Plug, and Mounting Gasket)
• Sonically Welded Lens and Housing
• Replaceable bulb
• Not  Suitable for PC Requirements
• Replaces Signal-Stat 1572/1572A
• Voltage: 12
• Warranty: 1 year
• Lighting Technology: Incandescent
• Number of Diodes/Bulbs: 1
• Number of Wires: 2
• Series: 18
• Lamp Connection: Socket Assembly
• Plug Side One: Socket Assembly
• Plug Side Two: Ring Terminal / Stripped End
• Lens Shape: Rectangular
• Lens Color: Yellow
• Mount/Trim Color: Yellow
• Housing Material: ABS
• Lens Material: Acrylic
• Compliance Family: FMVSS 108 / CMVSS 108 / DOT / SAE
• Mount Type: 2 Screw
• Mounting Connector Diameter: 0.2 inches
• Lens Width & Height: 4.5 x 1.63 inches
• Total Height, Width & Depth: 1.63 x 4.5 x 2.13 inches
• Wire Gauge: 18
• Weight: 0.15 pounds

Replacement Parts:

• Lens: 99012Y
• Mounting Gasket: 97927
• Plug: 94940

Cross# 01-CT-18300YL, 01-CT-18300Y

Related Items – Blue Bird Part #’s:

Bulb: 10027740

Gasket: 97927

Lamp Assembly: 99012Y

Plug: 94940
