E7561EBOA-FA, Opti-Luxx LED FA Series 7″ Round Warning Light (Amber)

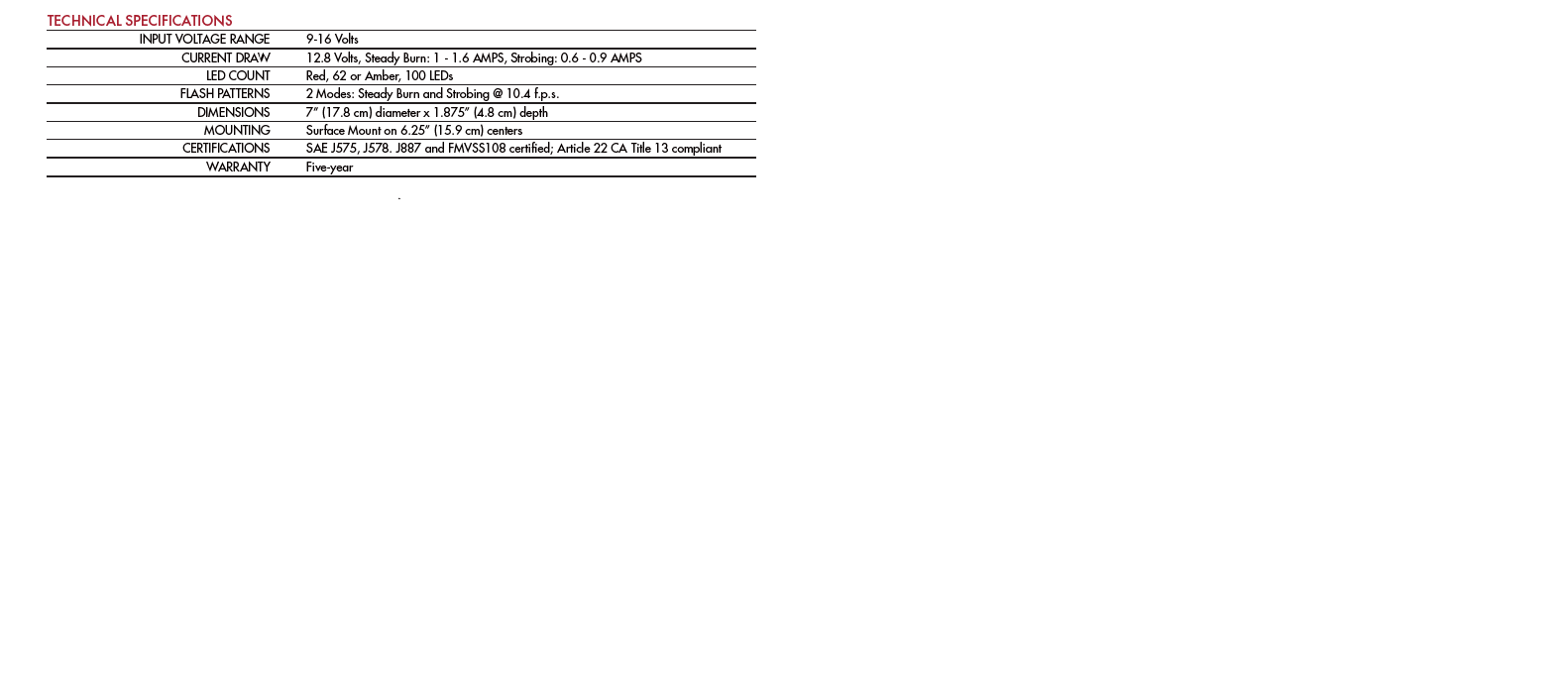

• 7561EBOA-FA
• Opti-Luxx 756 FA Series LED Amber Warning Light
• Replaces The RD Series
• LED’s: 100
• Flash Patterns: 2 Modes: Steady Burn & Strobing @ 10.4 f.p.s
• Input Voltage Range: 9-16 Vdc
• Current Consumption: @ 12.8 Vdc: Steady Burn: 1-1.6 amps, Strobing: 0.6-0.9 amps
• Mounting: Surface Mount on 6.25″ Centers
• Dimensions: 7″ Diameter x 1.875″ Depth
• Certifications: SAE J575, J578, J887; Article 22 CA Title 13 compliant & FMVSS 108
• Warranty: 5 years

Benefits & Features:

• Leading 8-Way Warning Light System
• Advanced Optical Technology
• Specifically Engineering Optics to Boost Light Output and Brightness
• Sonic Welded, Waterproof Construction
• Reinforced Stainless Steel Screw Bosses-Tested to 70 Inch lbs. of Torque
• Lens with UV Inhibitor Prevents Sun Fading
• Weatherproof Seal with Adhered Neoprene Gasket
• Includes 7″ Length Wire

Opti-Luxx Inc. is an industry leader with years of expertise in LED lighting and control systems for commercial vehicles. We’re focused on bringing innovative, safety-enhancing, and long-lasting LED products to the school bus market.  Our reputation is built on delivering cost-competitive products with hassle-free warranties, short lead times, and world-class customer service.

Old Part# USB7561EBOA, USB7561EBOA-RD, E7561EBOA-CL

Cross Ref #’s  4067250C2, 01-ZW-756Y

Thomas Part# E756IEBOA-FA

Opti-Luxx LED FA Series 7″ Round Warning Light (Red): E7561EBOR-FA
