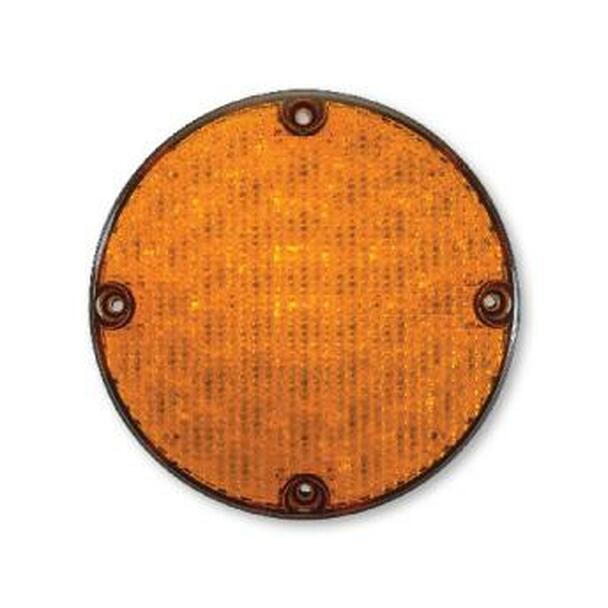

ECV7561TY-FA, Opti-Luxx LED FA Series 7″ Turn Signal Light (Amber)

• ECV7561TY-FA
• Replaces USB7561TY
• Opti-Luxx FA Series LED Amber Turn Signal Light
• LEDs: 19 Amber
• Surface Mount
• Input Voltage: 9-16 Vdc
• Current Consumption: @12.8 Vdc, Stop/Turn: 0.20 amps, Tail: 0.014 amps
• Mounting: Surface Mount on 6.25″ Centers
• Dimensions: 7″ Diameter x 1.875″ Depth
• Certifications: SAE J575, J578, J588, J1395 and FMVSS 108
• Warranty: 5 years

Opti-Luxx LED FA Series 7″ Turn Signal with Arrow (Amber):  ECV7561TYA-FA

Opti-Luxx LED FA Series 7″ Stop/Turn/Tail Light (Red): ECV7561STT-FA

Opti-Luxx LED FA Series 7″ Backup/Reverse Light: ECV7561B2W-FA

• Leading Turn Light Systems
• Advanced Optical Technology
• Specifically Engineering Optics to Boost Light Output and Brightness
• Sonic Welded, Waterproof Construction
• Reinforced Stainless Steel Screw Bosses- Tested to 70 Inches lbs. of Torque
• Lens with UV Inhibitor Prevents Sun Fading
• Weatherproof Seal with Adhered Neoprene Gasket
• Includes 7″ Length Wire

Opti-Luxx Inc. is an industry leader with years of expertise in LED lighting and control systems for commercial vehicles. We’re focused on bringing innovative, safety-enhancing, and long-lasting LED products to the school bus market.  Our reputation is built on delivering cost-competitive products with hassle-free warranties, short lead times, and world-class customer service.

Old Part# ECV7561TY-RD, USB7561TY, ECV7561TY-CL

Cross Ref #’s  3784742C1, 99737, AT3784742C1, 00099737

Thomas Part# ECV7561TY-FA
Original Vendor Part #: ECV7561TY
